Schmetz Sewing Machine Needle Guide

Author: Carrie Newman  Date Posted:21 March 2019

SCHMETZ HOUSEHOLD NEEDLE CHART

Choose your sewing machine needle size according to your thread thickness- and the needle type according to fabric application.

Using the correct needle will help to make your sewing project a success!



universal jersey-ball stretch

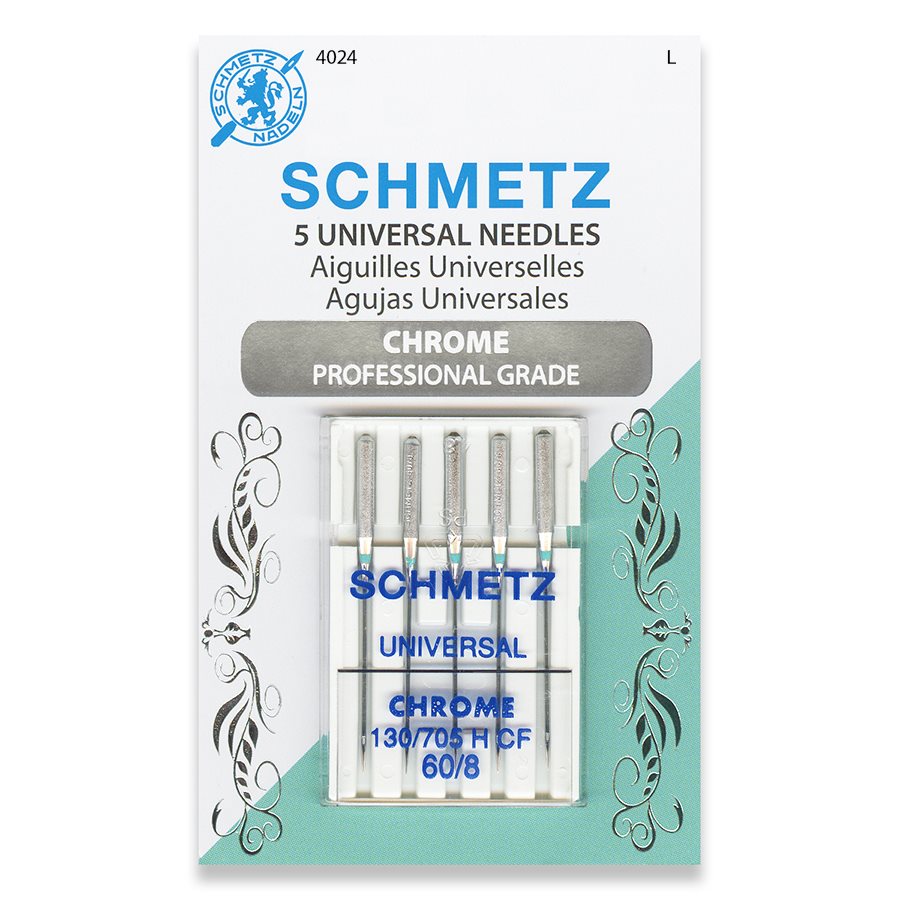

Universal
Size: 60/8, 65/9, 70/10, 75/11, 80/12, 90/14, 100/16, 110/18, 120/19, Assorted, Twin, Triple
Color Code: None
Feature: Slightly rounded point.
Fabric Use: Numerous – woven and knits. A great general purpose needle.
Jersey (Ball Point)
Size: 70/10, 80/12, 90/14, 100/16, Assorted
Color Code: None
Feature: Medium ball point.
Fabric Use: Knits & some stretch fabrics. Made especially for sewing on knits. The medium ball point does not damage or break knit fibers.
Stretch
Size: 75/11, 90/14, Twin
Color Code: Yellow
Feature: Medium ball point, special eye and scarf.
Fabric Use: Elastic materials and highly elastic knitwear. The medium ball point, specially designed eye and scarf prevent skipped stitches.
jeans microtex metallic-1
Jeans
Size: 70/10, 80/12, 90/14, 100/16,
110/18, Assorted, Twin
Color Code: Blue
Feature: Modified medium ball point and reinforced blade.
Fabric Use: Denim and similar fabrics. Advanced point design is a SCHMETZ exclusive. For penetrating extra thick woven fabrics, denims, or quilts with minimum needle deflection, reduced risk of needle breakage and skipped stitches.
Microtex (Sharp)
Size: 60/8, 70/10, 80/12, 90/14, 100/16, 110/18, Assorted
Color Code: Purple
Feature: Very slim acute point.
Fabric Use: Micro fibers, polyester, silk, foils, artificial leather, coated materials. Very thin acute point creates beautiful topstitching and perfectly straight stitches for quilt piecing when precision is paramount.
Metallic
Size: 80/12, 90/14, Twin
Color Code: None
Feature: Elongated eye.
Fabric Use: Metallic and other specialty threads. A “must have” for sewing with sensitive metallic threads. The elongated eye prevents shredding and breaking of metallic threads.
embroidery quilting top-stitching
Embroidery
Size: 75/11, 90/14, Assorted, Twin
Color Code: Red
Feature: Light ball point, wide eye and groove.
Fabric Use: Use with rayon, polyester and other specialty embroidery threads. The special scarf, widened groove and enlarged eye protect fragile threads and guard against excess friction allowing trouble-free embroidery and decorative stitching.
Quilting
Size: 75/11, 90/14, Assorted
Color Code: Green
Feature: Special taper to the slightly
rounded point.
Fabric Use: Made especially for piecing and machine quilting. The special tapered design allows easier fabric penetration and helps eliminate skipped stitches.
Topstitch
Size: 80/12, 90/14, 100/16
Color Code: None
Feature: Extra long eye.
Fabric Use: Topstitch, heavy, multiple or poor quality threads. Achieve perfectly straight stitch lines and even stitches when using a straight stitch plate.
gold leather hemstitch
Gold Embroidery
Size: 75/11, 90/14
Color Code: None
Feature: Titanium Nitride coating, slightly rounded point and enlarged eye.
Fabric Use: Coarse and densely woven materials. Slightly rounded point and enlarged eye are perfect for embroidery on most fabrics and with the most fragile specialty threads. Titanium coating resists adhesives, improves needle wear & penetration of coarse and densely woven fabrics.
Leather
Size: 70/10, 80/12, 90/14, 100/16, 110/18, Assorted
Color Code: None
Feature: Cutting point.
Fabric Use: Leather, artificial leather, heavy non-woven synthetics. Do not use on knit or woven fabrics
Hemstitch
Size: 100/16, 120/19, Twin
Color Code: None
Feature: A wing on each side of the needle.
Fabric Use: Light or medium weight loosely woven fabrics. Popular for heirloom sewing and to create decorative cutwork.
quick-threading double-eye
Quick Threading
Size: 80/12, 90/14
Color Code: None
Feature: Universal needle with a slip-in threading slot in the eye.
Fabric Use: Numerous – woven and knits. A general purpose needle for effortless threading.
Double Eye
Size: 80/12
Color Code: None
Feature: Universal needle with two eyes.
Fabric Uses: Numerous – woven and knits. Use two different threads for shading and texturing effects for embroidery and top stitching.
MULTIPLE NEEDLES
Twin
Double needles are actually two needles mounted on one shaft used to create two rows of stitches simultaneiously. Use two spools of thread and one bobbin thread.

Universal Twin
Sizes: 1.6/70, 1.6/80, 2.0/80, 2.5/80, 3.0/90, 4.0/80, 4.0/90, 4.0100, 6.0/100, 8.0/100, Assorted.

Double Hemstitch
Size: 2.5/100
A hemstitch needle and a universal needle with a 2.5mm separation.
double-triple Embroidery Twin
Size: 2.0/75, 3.0/75

Metallic Twin
Size: 2.5/80, 3.0/90

Jeans Twin
Size: 4.0/100

Stretch Twin
Size: 2.5/75, 4.0/75

Universal Triple
Size: 2.5/80, 3.0/80
